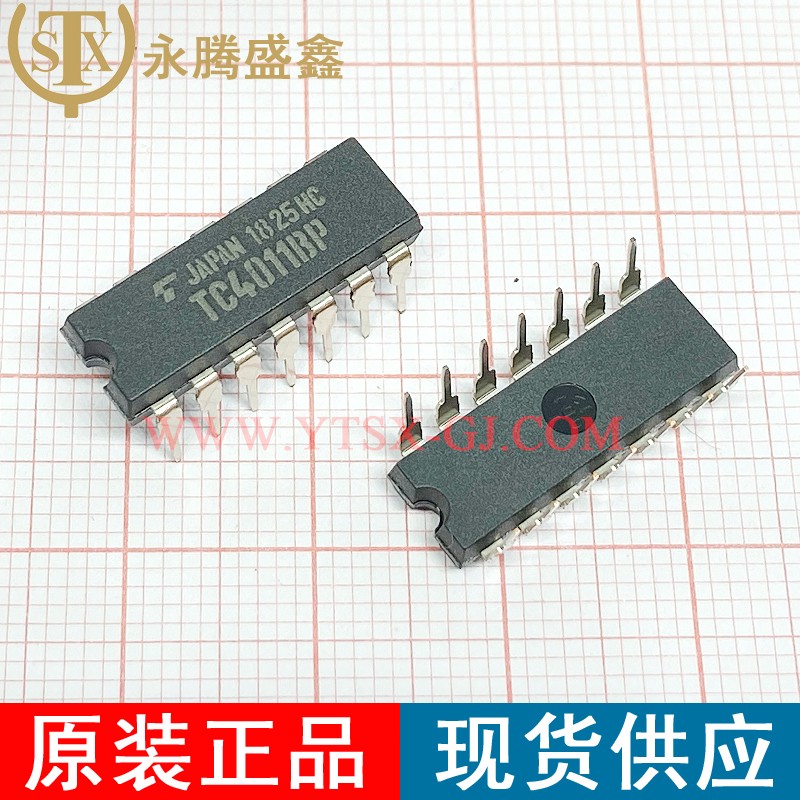

TC4011BP

Description:

Logic Gates CONV-DIP,DISCON(07-10)/PHASE-OUT(10-01)/OBSOLETE(10-04),

Brand:

TOS

Quantity:

33225

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	NAND
Logic Family:	4000
Number of Gates:	4 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 4 mA
Low Level Output Current:	4 mA
Propagation Delay Time:	200 ns
Supply Voltage - Max:	18 V
Supply Voltage - Min:	3 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	Through Hole
Package/Case:	DIP-14
Function:	NAND
Height:	3.5 mm
Length:	19.25 mm
Quiescent Current:	2 nA
Series:	TC4011
Width:	6.4 mm
Brand:	Toshiba
Logic Type:	CMOS
Operating Supply Voltage:	3.3 V, 5 V, 9 V, 12 V, 15 V
Product Type:	Logic Gates
