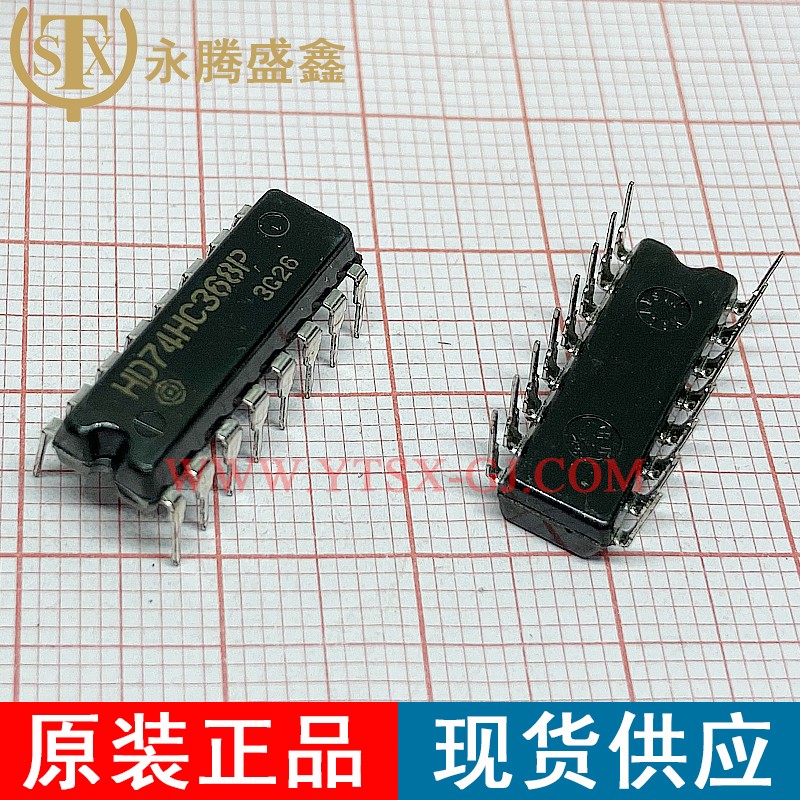

HD74HC368P

Description:

Buffers & Line Drivers Hi-Spd CMOS Logic Hex Buffer/Line Drvr

Brand:

RENESAS

Quantity:

27000

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Buffers & Line Drivers
Number of Input Lines:	6 Input
Number of Output Lines:	6 Output
Polarity:	Inverting
High Level Output Current:	- 7.8 mA
Low Level Output Current:	7.8 mA
Quiescent Current:	8 uA
Supply Voltage - Max:	6 V
Supply Voltage - Min:	2 V
Operating Supply Current:	80 uA
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package/Case:	DIP-16
Packaging:	Tube
Function:	Buffer/Line Driver
Height:	4.57 mm
Length:	19.3 mm
Operating Temperature Range:	- 55 C to + 125 C
Output Type:	3-State
Technology:	CMOS
Width:	6.35 mm
Logic Family:	HC
Logic Type:	CMOS
Number of Channels:	5
Supply Current - Max:	8 uA
Input Signal Type:	Single-Ended
Operating Supply Voltage:	2 V to 6 V
Product Type:	Buffers & Line Drivers
Propagation Delay Time:	105 ns
