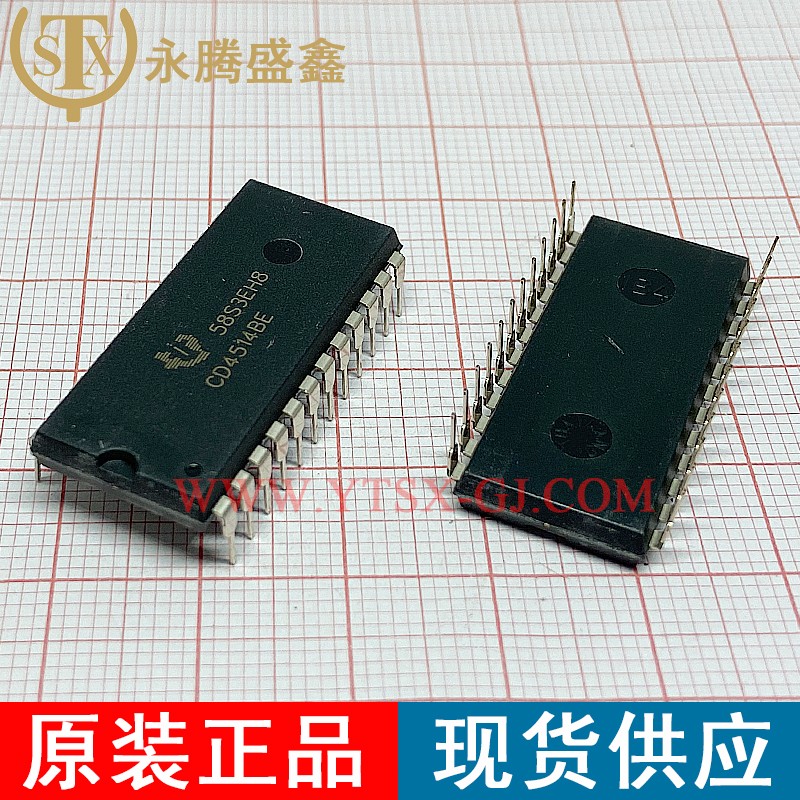

CD4514BE

Description:

Encoders, Decoders, Multiplexers & Demultiplexers 4-Bit Latch/Line

Brand:

Quantity:

15011

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Encoders, Decoders, Multiplexers & Demultiplexers
Product:	Decoders / Demultiplexers
Logic Family:	CD4000
Number of Bits:	4 bit
Number of Input Lines:	4 Input
Number of Output Lines:	16 Output
Propagation Delay Time:	370 ns
Supply Voltage - Min:	3 V
Supply Voltage - Max:	18 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package / Case:	DIP-24
Packaging:	Tube
Function:	Latch/Decoder/Demultiplexer
Height:	4.57 mm
Length:	31.75 mm
Number of Circuits:	1 Circuit
Operating Temperature Range:	- 55 C to + 125 C
Series:	CD4514B
Technology:	CMOS
Width:	13.71 mm
Brand:	Texas Instruments
Logic Type:	Decoder
Supply Current - Max:	0.1 mA
High Level Output Current:	- 1.5 mA
Low Level Output Current:	1.5 mA
Maximum Clock Frequency:	8 MHz
Operating Supply Voltage:	3 V to 18 V
Pd - Power Dissipation:	1150 mW
Product Type:	Encoders, Decoders, Multiplexers & Demultiplexers
