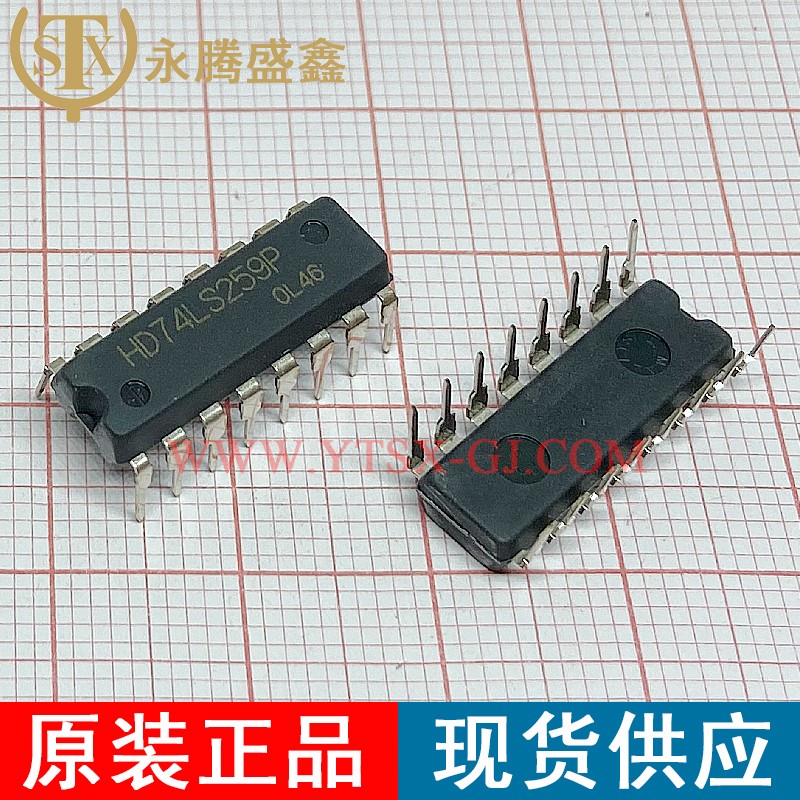

HD74LS259P

Description:

Latches Octal addressable Latches

Brand:

RENESAS

Quantity:

14675

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Latches
Number of Circuits:	1 Circuit
Logic Type:	Serial In/Parallel Out (SIPO) Shift Register
Logic Family:	74LS
Polarity:	Non-Inverting
Number of Output Lines:	2 Line
High Level Output Current:	- 400 uA
Low Level Output Current:	32 mA
Propagation Delay Time:	30 ns at 5 V
Supply Voltage - Max:	5.25 V
Supply Voltage - Min:	4.75 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Package / Case:	DIP-16
Packaging:	Tube
Function:	Addressable
Height:	4.57 mm
Length:	19.3 mm
Type:	D-Type
Width:	6.35 mm
Mounting Style:	Through Hole
Number of Channels:	8 Channels
Number of Input Lines:	3 Line
Operating Supply Current:	36 mA
Operating Supply Voltage:	4.75 V to 5.25 V
Product Type:	Latches
Reset Type:	Master Reset
