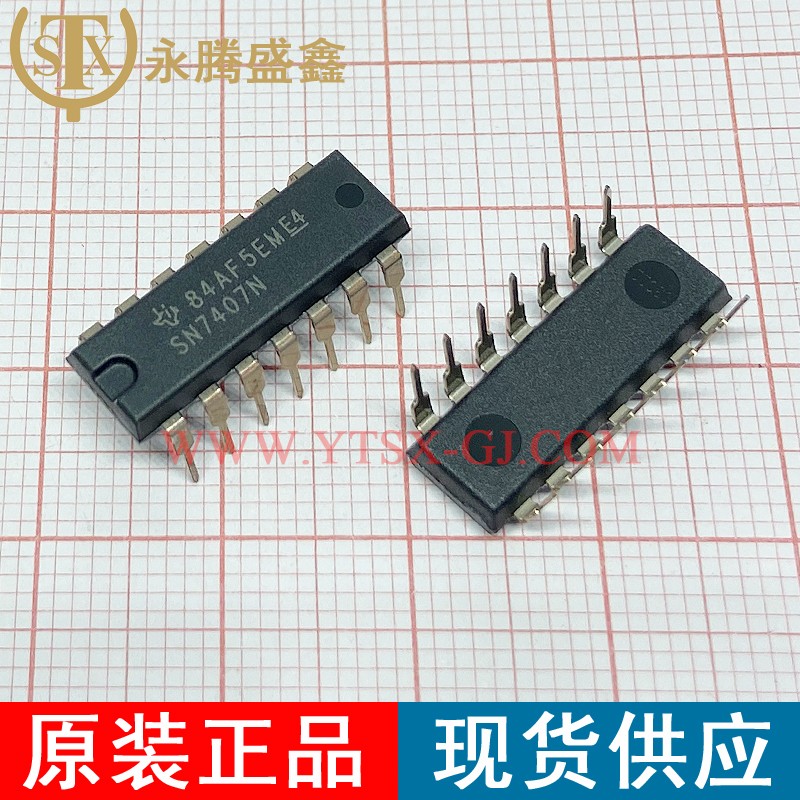

SN7407N

Description:

Buffers & Line Drivers Hex w/ HV Output

Brand:

Quantity:

14325

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Buffers & Line Drivers
Number of Input Lines:	6 Input
Number of Output Lines:	6 Output
Polarity:	Non-Inverting
High Level Output Current:	- 0.25 mA
Low Level Output Current:	40 mA
Supply Voltage - Max:	5.25 V
Supply Voltage - Min:	4.75 V
Operating Supply Current:	41 uA
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	SMD/SMT
Package/Case:	DIP-14
Packaging:	Tube
Function:	Buffer/Driver
Height:	3.3 mm
Length:	19.05 mm
Operating Temperature Range:	0 C to + 70 C
Output Type:	Open Collector
Series:	SN7407
Technology:	Bipolar
Width:	6.35 mm
Brand:	Texas Instruments
Logic Family:	TTL
Logic Type:	Bipolar
Number of Channels:	5
Input Signal Type:	Single-Ended
Operating Supply Voltage:	4.5 V to 5.5 V
Product Type:	Buffers & Line Drivers
Propagation Delay Time:	26 ns at 5 V
