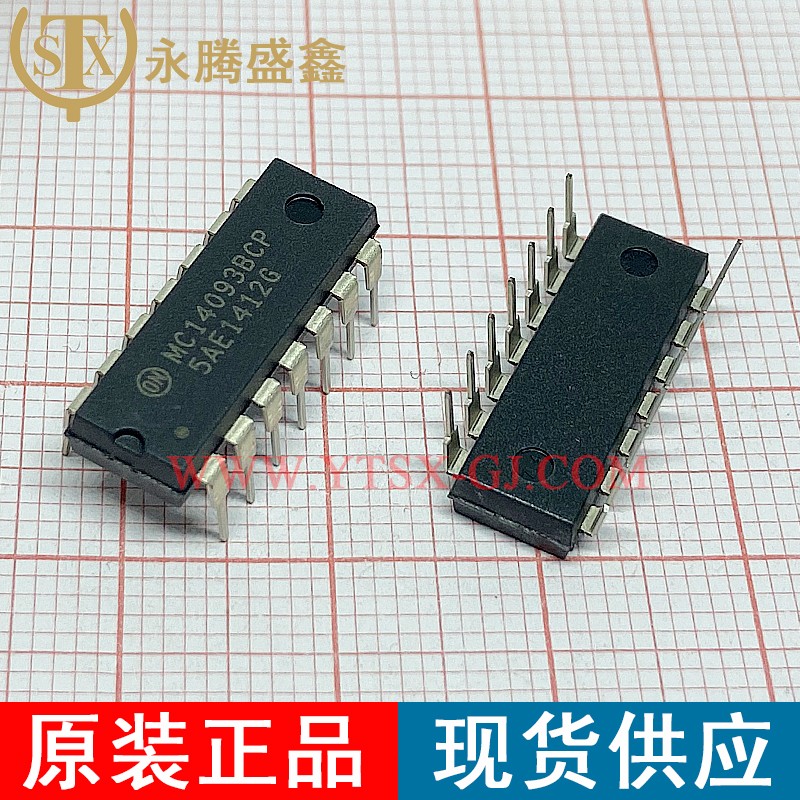

MC14093BCPG

Description:

Logic Gates 3-18V Quad 2-Input NAND Schmitt

Brand:

Quantity:

10889

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	NAND
Logic Family:	MC140
Number of Gates:	4 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 4.2 mA
Low Level Output Current:	4.2 mA
Propagation Delay Time:	250 ns
Supply Voltage - Max:	18 V
Supply Voltage - Min:	3 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package/Case:	DIP-14
Packaging:	Tube
Function:	NAND
Height:	3.68 mm
Input Type:	Schmitt Trigger
Length:	19.56 mm
Quiescent Current:	1.5 nA
Width:	6.6 mm
Brand:	ON Semiconductor
Logic Type:	2-Input NAND
Operating Supply Voltage:	3.3 V, 5 V, 9 V, 12 V, 15 V
Product Type:	Logic Gates
