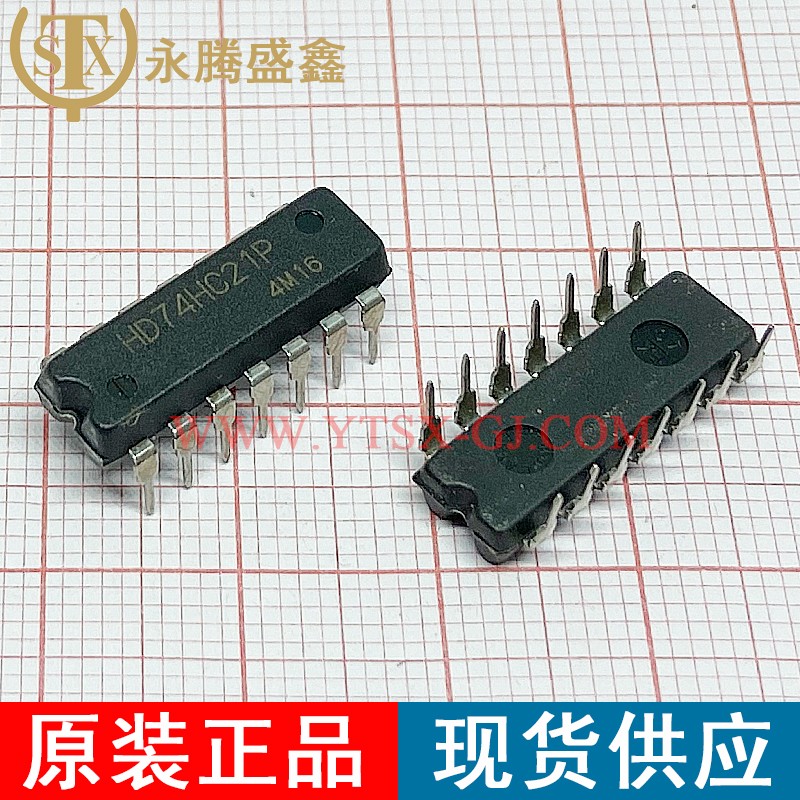

HD74HC21P

Description:

Logic Gates Hi-Speed CMOS Logic Dual 4-Inp AND Gate

Brand:

RENESAS

Quantity:

7000

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	AND
Logic Family:	HC
Number of Gates:	2 Gate
Number of Input Lines:	4 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 5.2 mA
Low Level Output Current:	5.2 mA
Propagation Delay Time:	28 ns
Supply Voltage - Max:	6 V
Supply Voltage - Min:	2 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Package/Case:	DIP-14
Packaging:	Tube
Function:	AND
Height:	4.57 mm
Input Type:	CMOS
Length:	19.3 mm
Operating Temperature Range:	- 55 C to + 125 C
Output Type:	CMOS
Width:	6.35 mm
Logic Type:	4-Input AND
Number of Bits:	2 bit
Operating Supply Current:	20 uA
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
