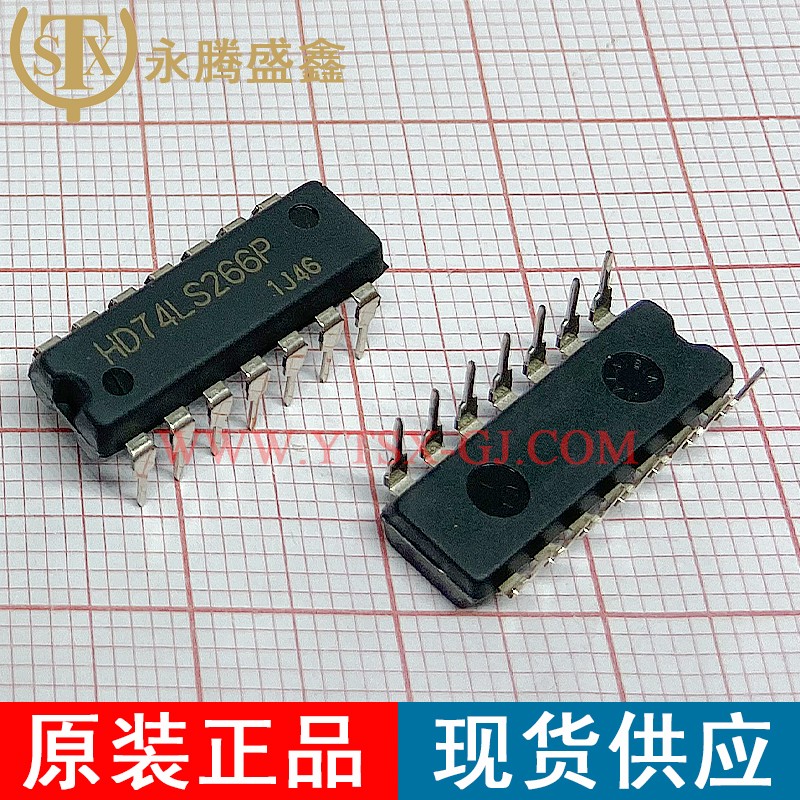

HD74LS266P

Description:

Logic Gates Quad 2-In w/ OC Out

Brand:

RENESAS

Quantity:

6550

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	XNOR
Logic Family:	LS
Number of Gates:	4 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 0.1 mA
Low Level Output Current:	8 mA
Propagation Delay Time:	30 ns
Supply Voltage - Max:	5.25 V
Supply Voltage - Min:	4.75 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Package / Case:	DIP-14
Packaging:	Tube
Function:	Quad 2-In w/ OC Out
Height:	4.57 mm
Input Type:	TTL
Length:	19.3 mm
Operating Temperature Range:	0 C to + 70 C
Output Type:	TTL
Quiescent Current:	8 mA
Width:	6.35 mm
Logic Type:	2-Input Exclusive-NOR
Number of Bits:	4 bit
Operating Supply Current:	13 uA
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
