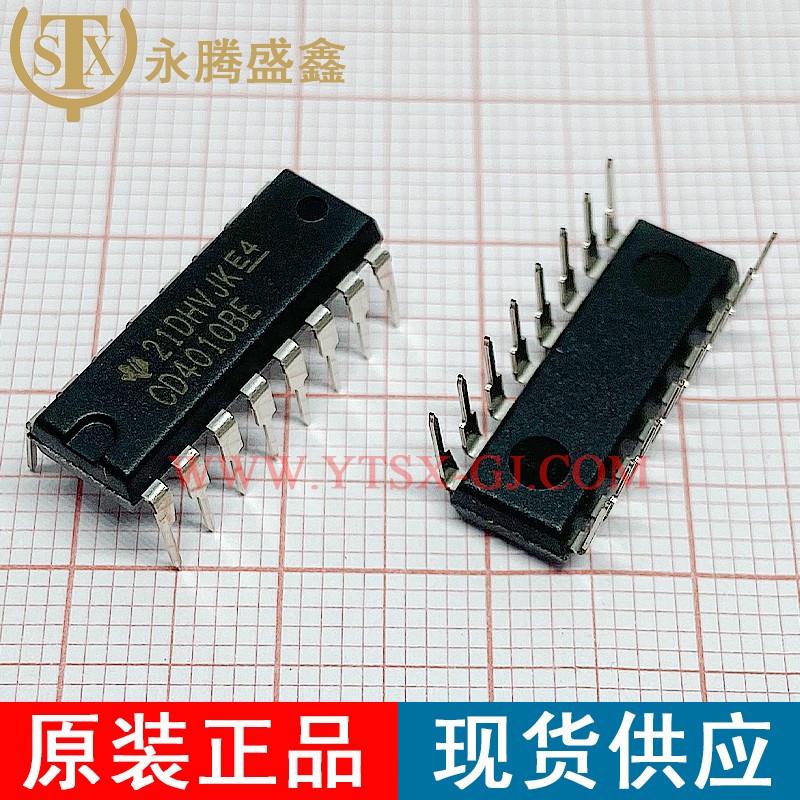

CD4010BE

Description:

Buffers & Line Drivers Hex Buffer/Cnvrtr

Brand:

Quantity:

4550

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Buffers & Line Drivers
Number of Input Lines:	6 Input
Number of Output Lines:	6 Output
Polarity:	Non-Inverting
High Level Output Current:	- 1.65 mA
Low Level Output Current:	30 mA
Quiescent Current:	40 nA
Supply Voltage - Max:	18 V
Supply Voltage - Min:	3 V
Operating Supply Current:	60 uA
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package / Case:	DIP-16
Packaging:	Tube
Function:	Buffer/Converter
Height:	4.57 mm
Length:	19.3 mm
Operating Temperature Range:	- 55 C to + 125 C
Output Type:	CMOS
Series:	CD4010B
Technology:	CMOS
Width:	6.35 mm
Brand:	Texas Instruments
Logic Family:	CD4000
Logic Type:	CMOS
Number of Channels:	5
Supply Current - Max:	20 uA
Input Signal Type:	Single-Ended
Operating Supply Voltage:	3 V to 18 V
Pd - Power Dissipation:	100 mW
Product Type:	Buffers & Line Drivers
Propagation Delay Time:	200 ns at 5 V, 100 ns at 10 V, 70 ns at 15 V
