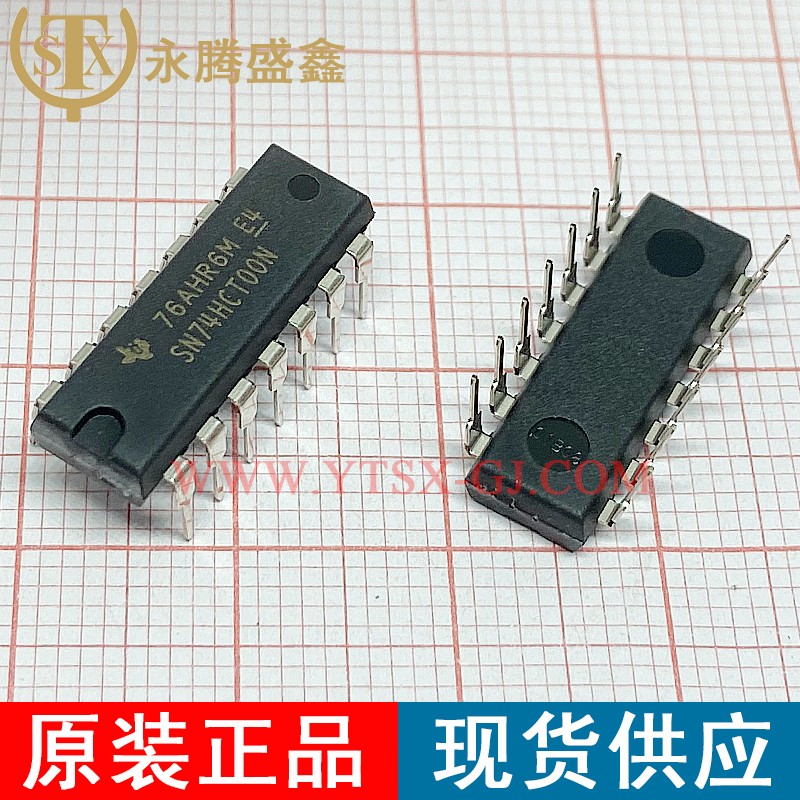

SN74HCT00N

Description:

Logic Gates Quad 2-Input

Brand:

Quantity:

4400

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	NAND
Logic Family:	HCT
Number of Gates:	4 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 4 mA
Low Level Output Current:	4 mA
Propagation Delay Time:	22 ns
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	4.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	Through Hole
Package / Case:	DIP-14
Packaging:	Tube
Function:	Quad 2-Input
Height:	4.57 mm
Input Type:	TTL
Length:	19.3 mm
Operating Temperature Range:	- 40 C to + 85 C
Output Type:	CMOS
Series:	SN74HCT00
Width:	6.35 mm
Brand:	Texas Instruments
Logic Type:	2-Input NAND
Operating Supply Current:	2.9 uA
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
