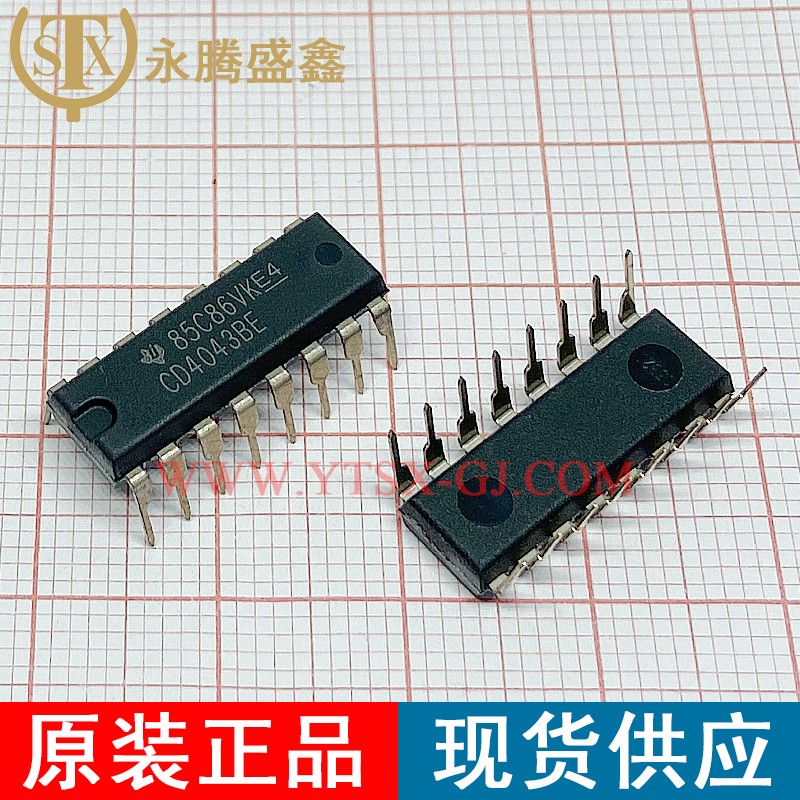

CD4043BE

Description:

Latches Tri-St. Quad NOR R/S

Brand:

Quantity:

1700

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Latches
Number of Circuits:	4 Circuit
Logic Type:	S-R Latch
Logic Family:	40
Polarity:	Non-Inverting
Quiescent Current:	20 uA
Number of Output Lines:	3 Line
High Level Output Current:	- 4.2 mA
Low Level Output Current:	32 mA
Propagation Delay Time:	300 ns at 5 V, 140 ns at 10 V, 100 ns at 15 V
Supply Voltage - Max:	18 V
Supply Voltage - Min:	3 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Package / Case:	DIP-16
Packaging:	Tube
Function:	3-State Quad NOR S/R
Height:	4.57 mm
Length:	19.3 mm
Output Type:	3-State
Series:	CD4043B
Type:	S-R Type
Width:	6.35 mm
Brand:	Texas Instruments
Mounting Style:	Through Hole
Number of Channels:	4 Channels
Number of Input Lines:	8 Line
Supply Current - Max:	40 nA
Operating Supply Voltage:	3 V to 18 V
Product Type:	Latches
Reset Type:	No Reset
