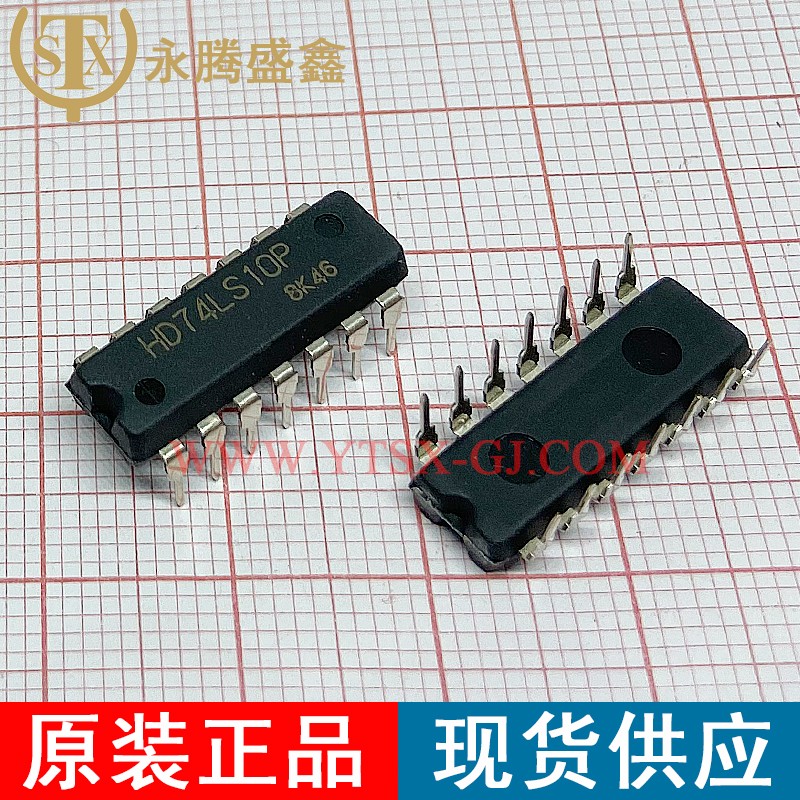

HD74LS10P

Description:

Logic Gates Triple 3-Input

Brand:

RENESAS

Quantity:

1611

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	NAND
Logic Family:	LS
Number of Gates:	3 Gate
Number of Input Lines:	3 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 20 mA
Low Level Output Current:	1 mA
Propagation Delay Time:	5 ns
Supply Voltage - Max:	5.25 V
Supply Voltage - Min:	4.75 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Package / Case:	DIP-14
Packaging:	Tube
Function:	NAND
Height:	4.57 mm
Input Type:	TTL
Length:	19.3 mm
Operating Temperature Range:	0 C to + 70 C
Output Type:	TTL
Width:	6.35 mm
Logic Type:	3-Input NAND
Operating Supply Current:	27 uA
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
