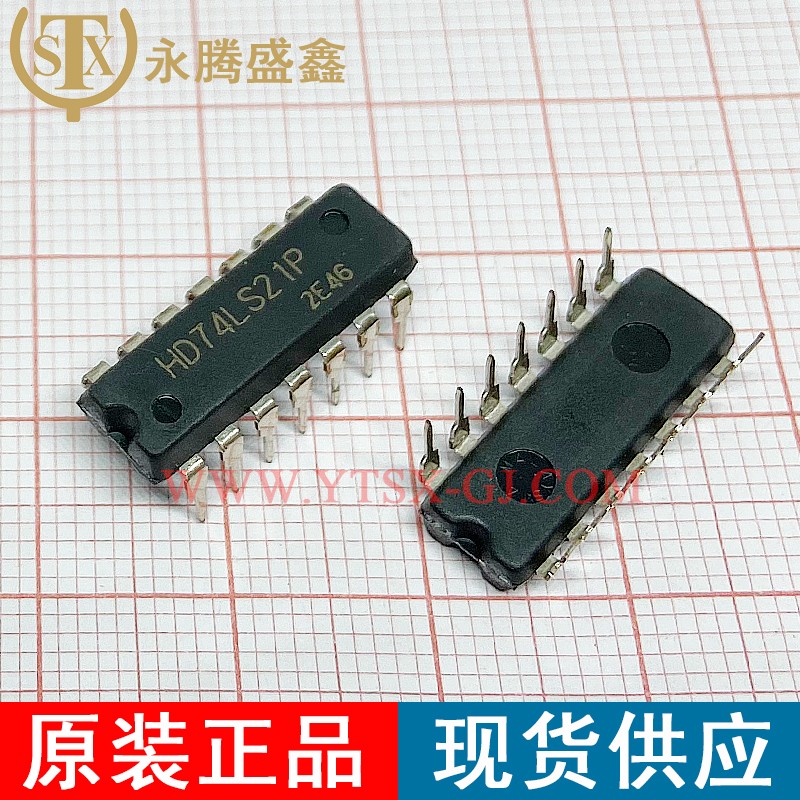

HD74LS21P

Description:

Logic Gates Dual 4-Input

Brand:

RENESAS

Quantity:

665

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	AND
Logic Family:	LS
Number of Gates:	2 Gate
Number of Input Lines:	4 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 0.4 mA
Low Level Output Current:	8 mA
Propagation Delay Time:	15 ns
Supply Voltage - Max:	5.25 V
Supply Voltage - Min:	4.75 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Package / Case:	DIP-14
Packaging:	Tube
Function:	Dual 4-Input
Height:	4.57 mm
Input Type:	TTL
Length:	19.3 mm
Operating Temperature Range:	0 C to + 70 C
Output Type:	TTL
Width:	6.35 mm
Logic Type:	4-Input AND
Number of Bits:	2 bit
Operating Supply Current:	2.5 uA
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
