HD74LS148P - YTSX (INTL) GROUPCO.,LIMITED

PRODUCTS

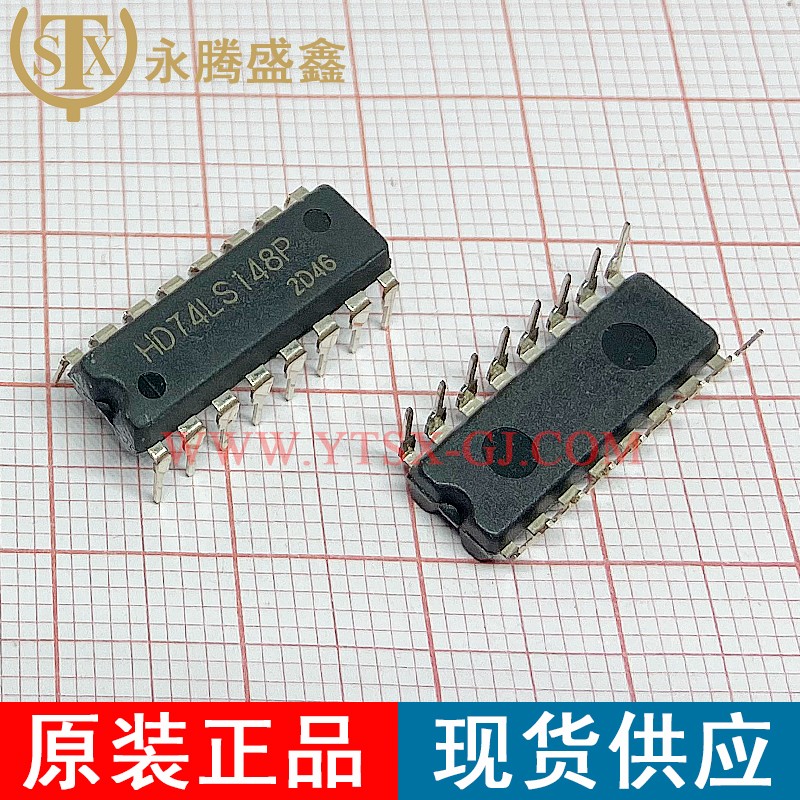

HD74LS148P

Description:

Encoders, Decoders, Multiplexers & Demultiplexers Line Priority Encodr

Brand:

RENESAS

Quantity:

425

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Encoders, Decoders, Multiplexers & Demultiplexers
Product:	Selectors / Multiplexers
Logic Family:	LS
Number of Bits:	16 bit
Number of Input Lines:	8 Input
Number of Output Lines:	3 Output
Propagation Delay Time:	19 ns
Supply Voltage - Min:	4.75 V
Supply Voltage - Max:	5.25 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Package / Case:	DIP-16
Packaging:	Tube
Function:	Encoder
Height:	4.57 mm
Length:	19.3 mm
Number of Circuits:	Quad
Operating Temperature Range:	0 C to + 70 C
Output Current:	- 400 uA, 8 mA
Width:	6.35 mm
Logic Type:	Priority Encoder
High Level Output Current:	- 0.4 mA
Low Level Output Current:	8 mA
Maximum Clock Frequency:	35 MHz
Operating Supply Voltage:	5 V
Pd - Power Dissipation:	500 mW (1/2 W)
Product Type:	Encoders, Decoders, Multiplexers & Demultiplexers
