CD74HC238E - YTSX (INTL) GROUPCO.,LIMITED

PRODUCTS

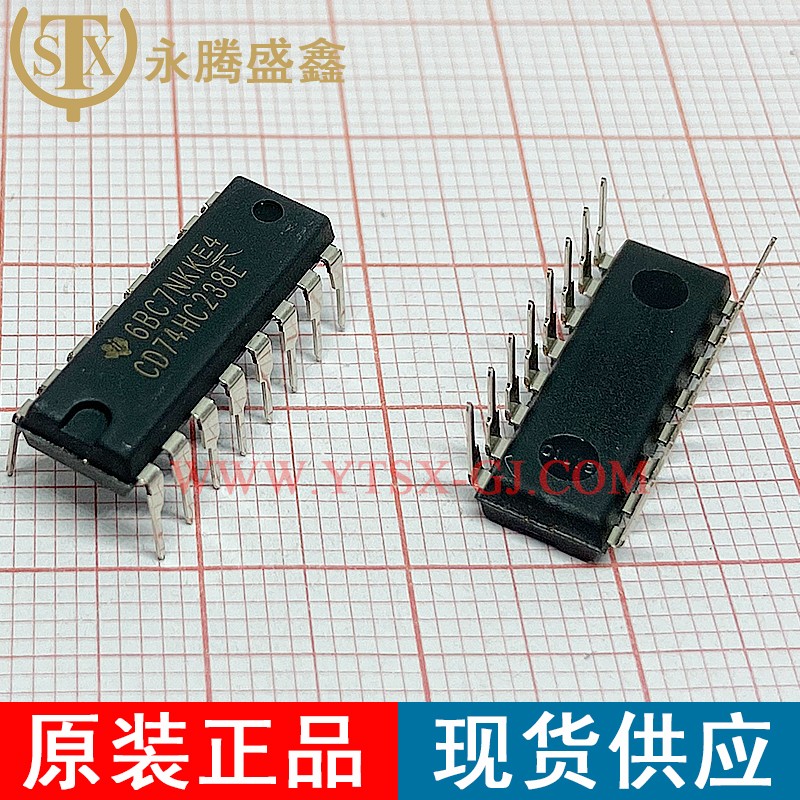

CD74HC238E

Description:

Encoders, Decoders, Multiplexers & Demultiplexers Hi-Spd CMOS 3-8 Line Decoder/Demltplxr

Brand:

Quantity:

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Encoders, Decoders, Multiplexers & Demultiplexers
Product:	Decoders / Demultiplexers
Logic Family:	HC
Number of Input Lines:	3 Input
Number of Output Lines:	8 Output
Propagation Delay Time:	30 ns
Supply Voltage - Min:	2 V
Supply Voltage - Max:	6 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package / Case:	DIP-16
Packaging:	Tube
Function:	Decoder/Demultiplexer
Height:	4.57 mm
Length:	19.3 mm
Number of Circuits:	Dual
Operating Temperature Range:	- 55 C to + 125 C
Series:	CD74HC238
Technology:	CMOS
Width:	6.35 mm
Brand:	Texas Instruments
Logic Type:	Decoders/Demultiplexers
Supply Current - Max:	0.008 mA
High Level Output Current:	- 5.2 mA
Low Level Output Current:	5.2 mA
Maximum Clock Frequency:	28 MHz
Operating Supply Voltage:	2 V to 6 V
Product Type:	Encoders, Decoders, Multiplexers & Demultiplexers
