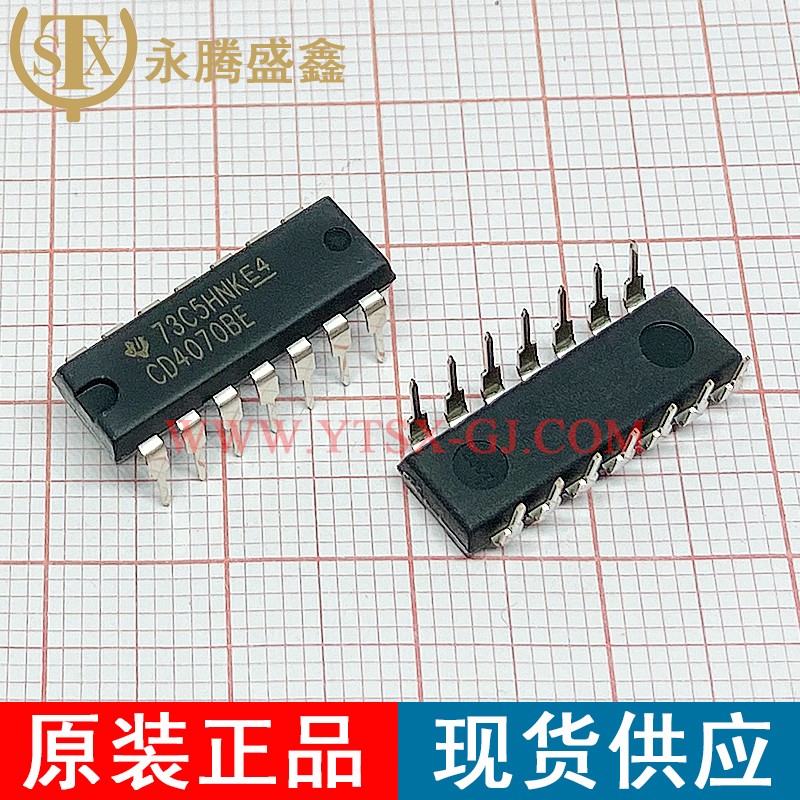

CD4070BE

Description:

Logic Gates Quad Exclusive

Brand:

Quantity:

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	XOR
Logic Family:	CD4000
Number of Gates:	4 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 1.5 mA
Low Level Output Current:	1.5 mA
Propagation Delay Time:	130 ns
Supply Voltage - Max:	18 V
Supply Voltage - Min:	3 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	Through Hole
Package / Case:	DIP-14
Packaging:	Tube
Function:	Quad ExclusiVe
Height:	4.57 mm
Input Type:	CMOS
Length:	19.3 mm
Operating Temperature Range:	- 55 C to + 125 C
Output Type:	CMOS
Quiescent Current:	20 nA
Series:	CD4070B
Width:	6.35 mm
Brand:	Texas Instruments
Logic Type:	XOR
Number of Bits:	4 bit
Operating Supply Current:	15 uA
Operating Supply Voltage:	10 V
Product Type:	Logic Gates
