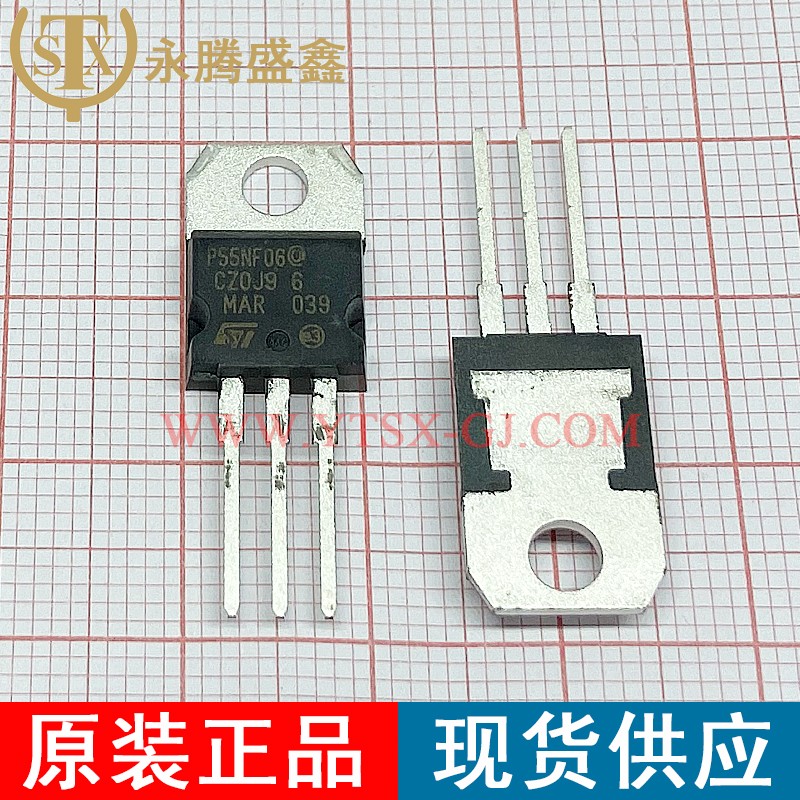

STP55NF06

Description:

MOSFET N-Ch 60 Volt 55 Amp

Brand:

Quantity:

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	MOSFET
Technology:	Si
Mounting Style:	Through Hole
Package / Case:	TO-220
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	60 V
Id - Continuous Drain Current:	50 A
Rds On - Drain-Source Resistance:	18 mOhms
Vgs - Gate-Source Voltage:	10 V
Vgs th - Gate-Source Threshold Voltage:	2 V
Qg - Gate Charge:	44.5 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	110 W
Channel Mode:	Enhancement
Packaging:	Tube
Configuration:	Single
Height:	9.15 mm
Length:	10.4 mm
Series:	STP55NF06
Transistor Type:	1 N-Channel
Type:	MOSFET
Width:	4.6 mm
Brand:	STMicroelectronics
Forward Transconductance - Min:	18 S
Fall Time:	15 ns
Product Type:	MOSFET
Rise Time:	50 ns
