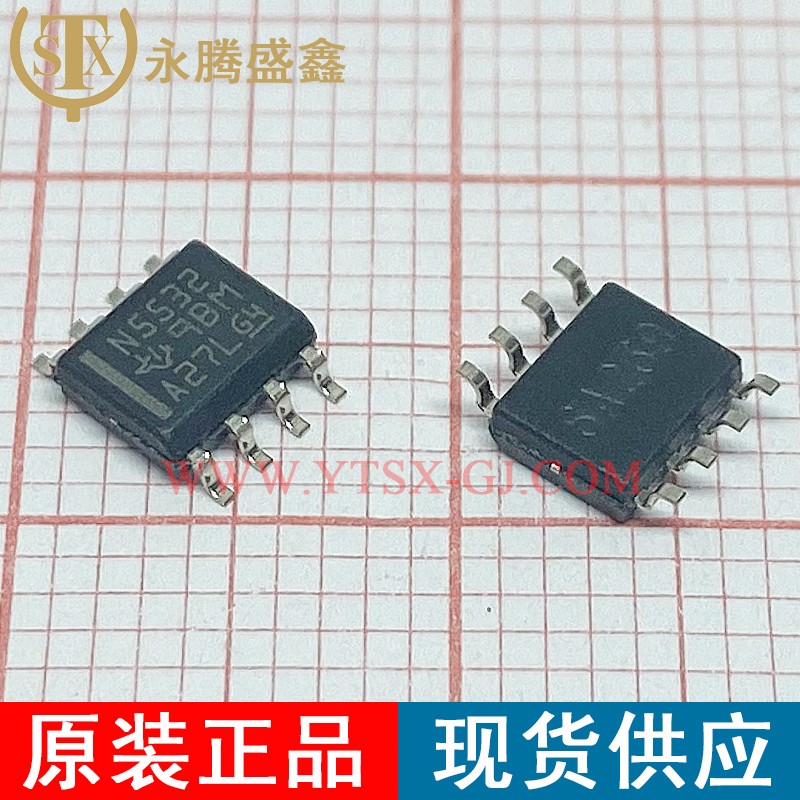

NE5532DR

Description:

Operational Amplifiers - Op Amps Dual Low Noise Op

Brand:

Quantity:

85080

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	SMD/SMT
Package/Case:	SOP-8
Number of Channels:	2 Channel
Supply Voltage - Max:	30 V
GBP - Gain Bandwidth Product:	10 MHz
Output Current per Channel:	38 mA
SR - Slew Rate:	9 V/us
Vos - Input Offset Voltage:	4 mV
Supply Voltage - Min:	10 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Ib - Input Bias Current:	800 nA
Operating Supply Current:	4 mA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	70 dB to 100 dB
en - Input Voltage Noise Density:	8 nV/sqrt Hz at +/- 15 V
Series:	NE5532
Packaging:	Cut Tape
Packaging:	MouseReel
Packaging:	Reel
Amplifier Type:	Low Noise Amplifier
Height:	1.58 mm
Length:	4.9 mm
Product:	Operational Amplifiers
Supply Type:	Single, Dual
Technology:	Bipolar
Width:	3.91 mm
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 9 V, +/- 12 V
In - Input Noise Current Density:	2.7 pA/sqrt Hz
Maximum Dual Supply Voltage:	+/- 15 V
Minimum Dual Supply Voltage:	+/- 5 V
Operating Supply Voltage:	10 V to 30 V, +/- 5 V to +/- 15 V
Product Type:	Op Amps - Operational Amplifiers
