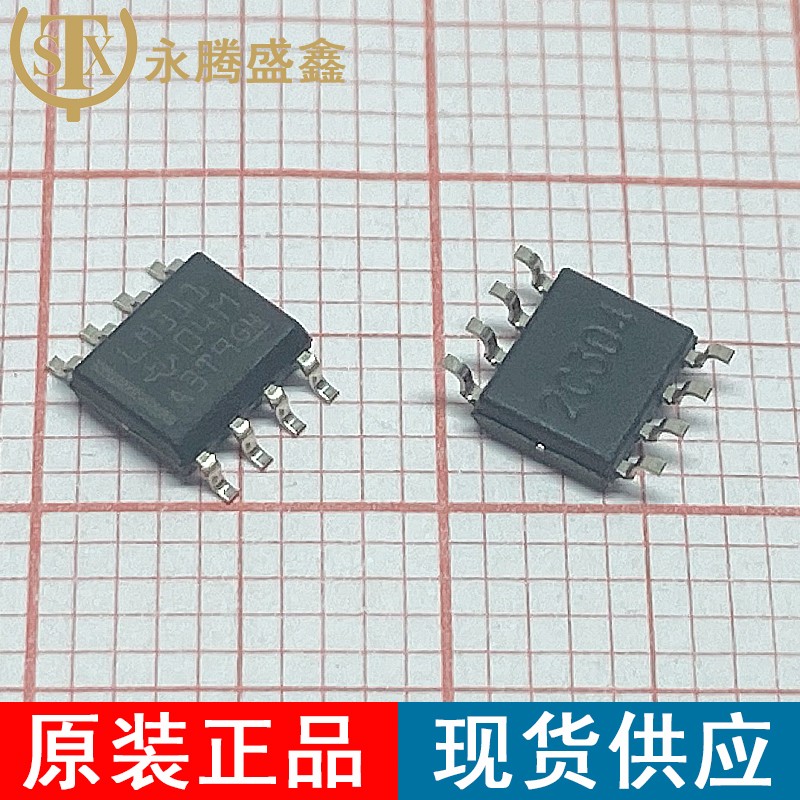

LM311DR

Description:

Analog Comparators Differential w/Strob

Brand:

Quantity:

77200

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Analog Comparators
Mounting Style:	SMD/SMT
Package / Case:	SOP-8
Number of Channels:	1 Channel
Output Type:	Open Collector, Open Drain
Response Time:	115 ns
Comparator Type:	Differential
Supply Voltage - Min:	3.5 V
Supply Voltage - Max:	30 V
Operating Supply Current:	7.5 mA
Output Current per Channel:	50 mA
Vos - Input Offset Voltage:	7.5 mV
Ib - Input Bias Current:	250 nA
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Series:	LM311
Packaging:	Cut Tape
Packaging:	MouseReel
Packaging:	Reel
Features:	Strobe, Vos Adj Pin
Height:	1.58 mm
Length:	4.9 mm
Product:	Analog Comparators
Supply Type:	Single, Dual
Technology:	Bipolar
Type:	Voltage Comparator
Width:	3.91 mm
Brand:	Texas Instruments
Shutdown:	No Shutdown
Dual Supply Voltage:	+/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
GBP - Gain Bandwidth Product:	-
Ios - Input Offset Current:	50 nA
Maximum Dual Supply Voltage:	+/- 15 V
Minimum Dual Supply Voltage:	1.75 V
Operating Supply Voltage:	3.5 V to 30 V
Product Type:	Analog Comparators
Reference Voltage:	No
