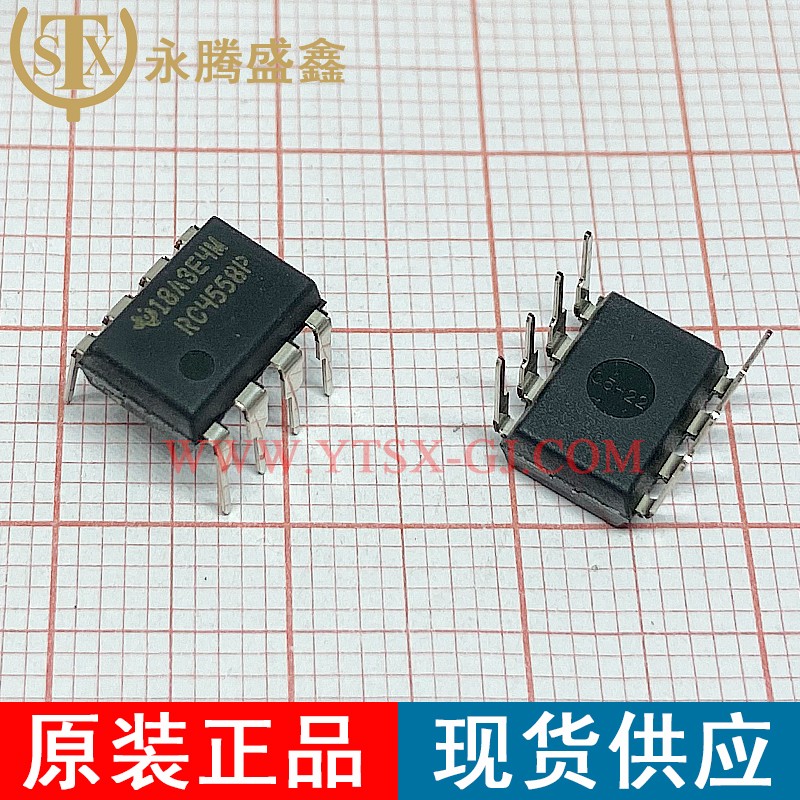

RC4558P

Description:

Operational Amplifiers - Op Amps High Preformance

Brand:

Quantity:

30600

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	Through Hole
Package / Case:	DIP-8
Number of Channels:	2 Channel
Supply Voltage - Max:	30 V
GBP - Gain Bandwidth Product:	3 MHz
SR - Slew Rate:	1.7 V/us
Vos - Input Offset Voltage:	6 mV
Supply Voltage - Min:	10 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Ib - Input Bias Current:	500 nA
Operating Supply Current:	1.25 mA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	70 dB to 90 dB
en - Input Voltage Noise Density:	8 nV/sqrt Hz
Series:	RC4558
Packaging:	Tube
Amplifier Type:	General Purpose Amplifier
Height:	4.57 mm
Length:	9.81 mm
Product:	Operational Amplifiers
Supply Type:	Single, Dual
Technology:	Bipolar
Width:	6.35 mm
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 9 V, +/- 12 V
Maximum Dual Supply Voltage:	+/- 15 V
Minimum Dual Supply Voltage:	+/- 5 V
Operating Supply Voltage:	10 V to 30 V, +/- 5 V to +/- 15 V
Product Type:	Op Amps - Operational Amplifiers
