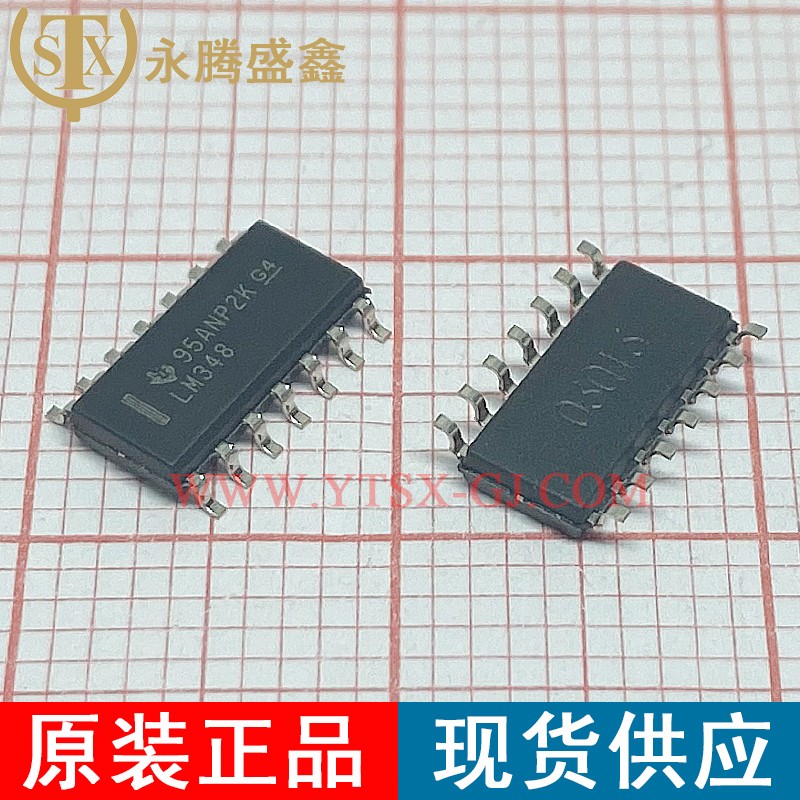

LM348DR

Description:

Operational Amplifiers - Op Amps Quad GP Op Amp

Brand:

Quantity:

27060

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	SMD/SMT
Package / Case:	SOP-14
Number of Channels:	4 Channel
Supply Voltage - Max:	36 V
GBP - Gain Bandwidth Product:	1 MHz
Output Current per Channel:	25 mA
SR - Slew Rate:	0.5 V/us
Vos - Input Offset Voltage:	6 mV
Supply Voltage - Min:	8 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Ib - Input Bias Current:	200 nA
Operating Supply Current:	600 uA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	70 dB to 90 dB
Series:	LM348
Packaging:	Cut Tape
Packaging:	MouseReel
Packaging:	Reel
Amplifier Type:	High Gain Amplifier
Height:	1.58 mm
Length:	8.65 mm
Product:	Operational Amplifiers
Supply Type:	Dual
Width:	3.91 mm
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 4 V
Operating Supply Voltage:	+/- 4 V to +/- 18 V
Product Type:	Op Amps - Operational Amplifiers
