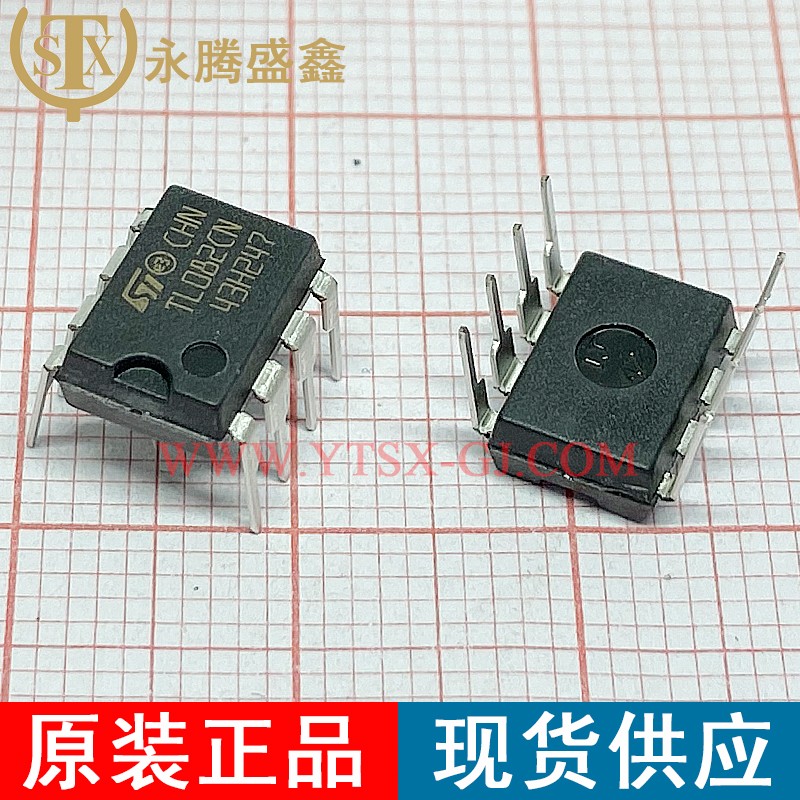

TL082CN

Description:

Operational Amplifiers - Op Amps Dual Gen Purp JFET

Brand:

Quantity:

7702

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	Through Hole
Package/Case:	DIP-8
Number of Channels:	2 Channel
Supply Voltage - Max:	36 V
GBP - Gain Bandwidth Product:	4 MHz
Output Current per Channel:	40 mA
SR - Slew Rate:	16 V/us
Vos - Input Offset Voltage:	10 mV
Supply Voltage - Min:	6 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Ib - Input Bias Current:	400 pA
Operating Supply Current:	2.5 mA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	70 dB
en - Input Voltage Noise Density:	15 nV/sqrt Hz
Series:	TL082
Packaging:	Tube
Amplifier Type:	General Purpose Amplifier
Height:	3.3 mm
Length:	9.27 mm
Product:	Operational Amplifiers
Supply Type:	Single, Dual
Technology:	BiFET
Width:	6.35 mm
Brand:	STMicroelectronics
Dual Supply Voltage:	+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 3 V
Operating Supply Voltage:	6 V to 36 V, +/- 3 V to +/- 18 V
Pd - Power Dissipation:	680 mW
Product Type:	Op Amps - Operational Amplifiers
