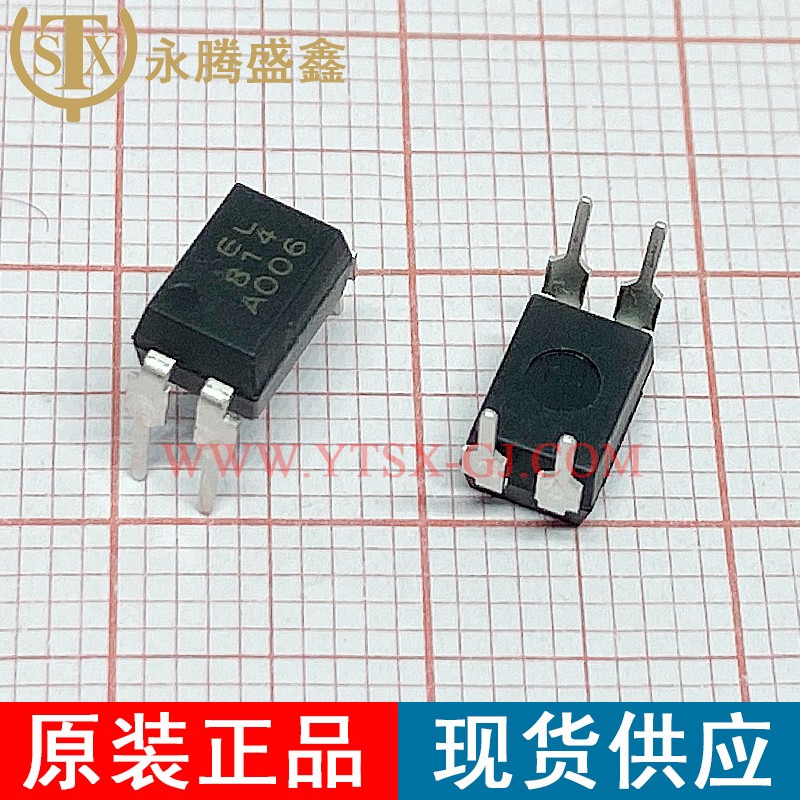

EL814A

Description:

Transistor Output Optocouplers 50-150CTR 5000Vrms -55 to +110 Op Temp

Brand:

Quantity:

26400

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Transistor Output Optocouplers
Package / Case:	DIP-4
Output Type:	NPN Phototransistor
Number of Channels:	1 Channel
If - Forward Current:	60 mA
Maximum Collector Emitter Voltage:	80 V
Isolation Voltage:	5000 Vrms
Maximum Collector Emitter Saturation Voltage:	0.2 V
Vf - Forward Voltage:	1.4 V
Pd - Power Dissipation:	200 mW
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 110 C
Packaging:	Tube
Configuration:	1 Channel
Length:	4.58 mm
Width:	6.5 mm
Current Transfer Ratio:	300 %
Fall Time:	18 us
Product Type:	Transistor Output Optocouplers
Rise Time:	18 us
