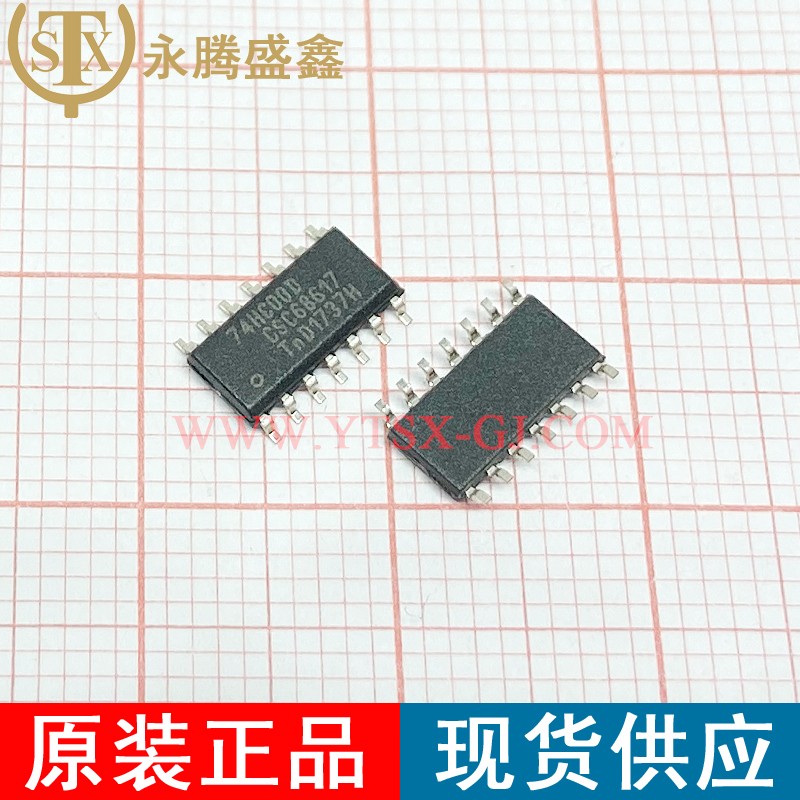

74HC00D

Description:

Logic Gates QUAD 2-IN NAND GATE

Brand:

NXP

Quantity:

31917

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	NAND
Logic Family:	74HC
Number of Gates:	4 Gate
Number of Input Lines:	8 Input
Number of Output Lines:	4 Output
High Level Output Current:	- 5.2 mA
Low Level Output Current:	5.2 mA
Propagation Delay Time:	7 ns
Supply Voltage - Max:	6 V
Supply Voltage - Min:	2 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Package/Case:	SOP-14
Function:	NAND
Height:	1.45 mm
Length:	8.75 mm
Width:	4 mm
Logic Type:	Quad NAND Gate
Operating Supply Voltage:	2 V to 6 V
Product Type:	Logic Gates
