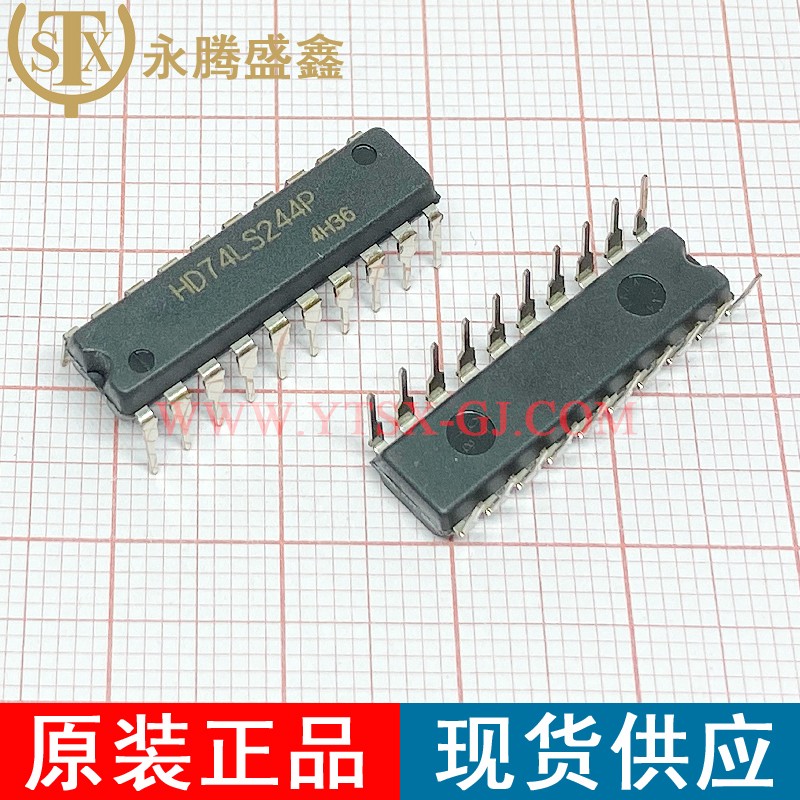

HD74LS244P

Description:

Buffers & Line Drivers Tri-State Octal

Brand:

RENESAS

Quantity:

23300

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Buffers & Line Drivers
Number of Input Lines:	8 Input
Number of Output Lines:	8 Output
Polarity:	Non-Inverting
High Level Output Current:	- 15 mA
Low Level Output Current:	24 mA
Quiescent Current:	27 mA
Supply Voltage - Max:	5.25 V
Supply Voltage - Min:	4.75 V
Operating Supply Current:	46 uA
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Package/Case:	DIP-20
Packaging:	Tube
Function:	Buffer/Line Driver
Height:	4.57 mm
Length:	24.33 mm
Operating Temperature Range:	0 C to + 70 C
Output Type:	3-State
Technology:	Bipolar
Width:	6.35 mm
Logic Family:	LS
Logic Type:	Bipolar
Number of Channels:	8
Supply Current - Max:	46 mA
Input Signal Type:	Single-Ended
Operating Supply Voltage:	5 V
Product Type:	Buffers & Line Drivers
Propagation Delay Time:	18 ns at 5 V
