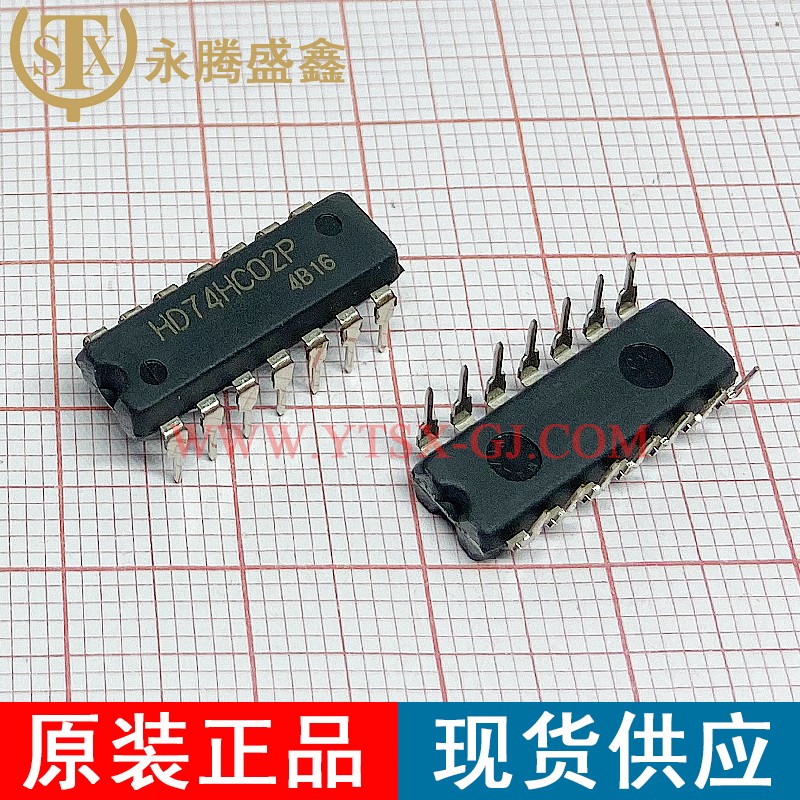

HD74HC02P

Description:

Logic Gates HS Quad 2-Input

Brand:

RENESAS

Quantity:

7500

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Logic Gates
Product:	Single-Function Gate
Logic Function:	NOR
Logic Family:	HC
Number of Gates:	4 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 5.2 mA
Low Level Output Current:	5.2 mA
Propagation Delay Time:	23 ns
Supply Voltage - Max:	6 V
Supply Voltage - Min:	2 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Package/Case:	DIP-14
Packaging:	Tube
Function:	HS Quad 2-Input
Height:	4.57 mm
Input Type:	CMOS
Length:	19.3 mm
Operating Temperature Range:	- 55 C to + 125 C
Output Current:	20 mA
Output Type:	CMOS
Width:	6.35 mm
Logic Type:	2-Input NOR
Number of Bits:	4 bit
Operating Supply Current:	20 uA
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
