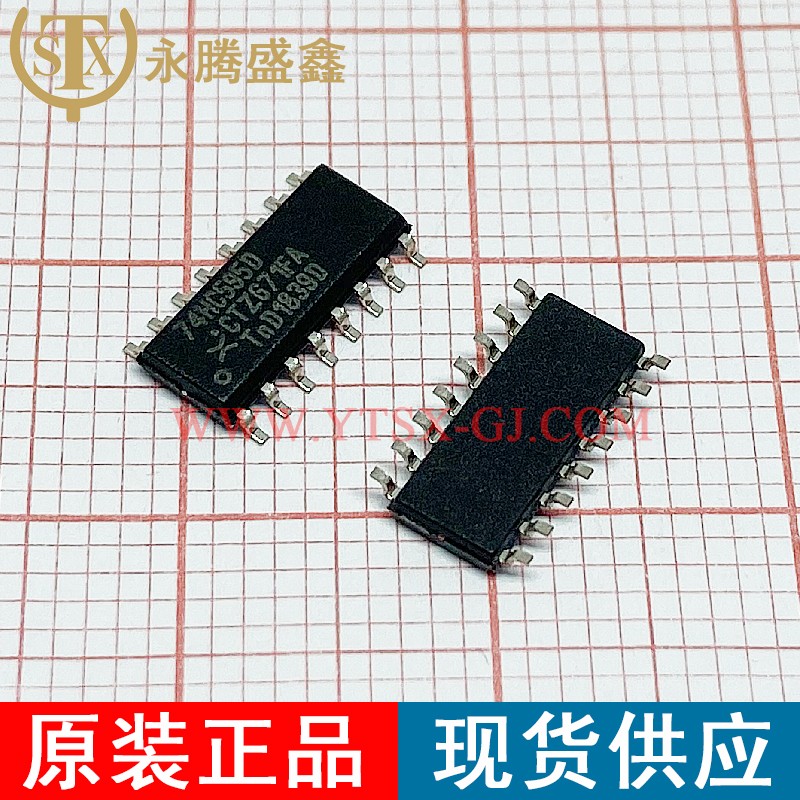

74HC595D

Description:

Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH

Brand:

NXP

Quantity:

13141

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Counter Shift Registers
Counting Sequence:	Serial to Serial/Parallel
Number of Circuits:	1
Number of Bits:	8 bit
Package/Case:	SOP-16
Logic Family:	HC
Logic Type:	CMOS
Number of Input Lines:	1
Output Type:	3-State
Propagation Delay Time:	175 ns, 35 ns, 30 ns
Supply Voltage - Min:	2 V
Supply Voltage - Max:	6 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Features:	No Parallel Enable Input
Function:	Shift Register
Height:	1.45 mm
Length:	10 mm
Width:	4 mm
Brand:	NXP Semiconductors
Mounting Style:	SMD/SMT
Number of Output Lines:	9
Supply Current - Max:	0.16 mA
Operating Supply Voltage:	5 V
Product Type:	Counter Shift Registers
Reset Type:	Asynchronous
