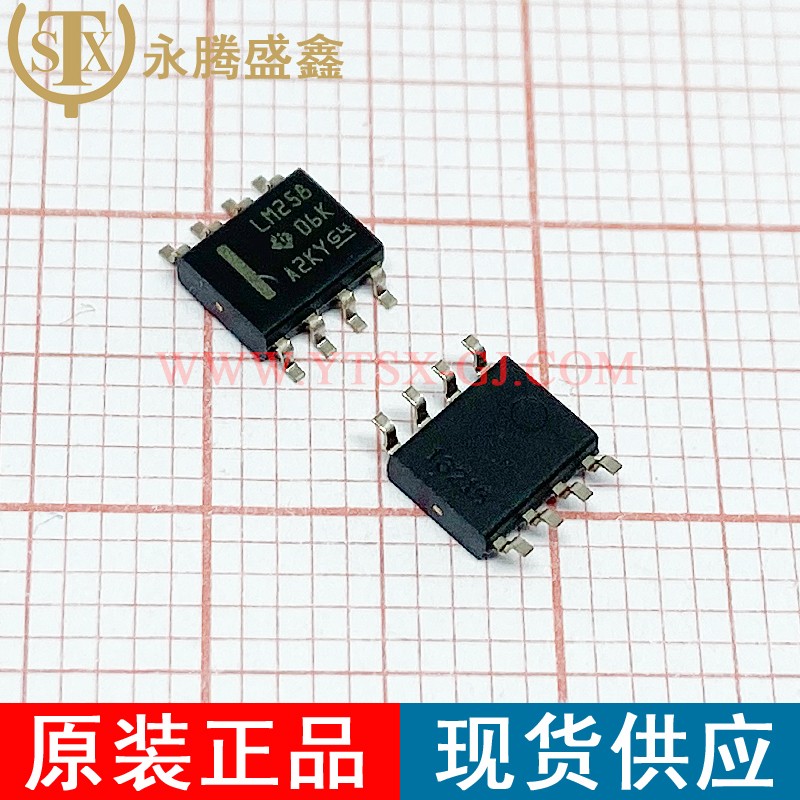

LM258DR

Description:

Operational Amplifiers - Op Amps Dual Op Amp

Brand:

Quantity:

134100

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	SMD/SMT
Package/Case:	SOP-8
Number of Channels:	2 Channel
Supply Voltage - Max:	32 V
GBP - Gain Bandwidth Product:	700 kHz
Output Current per Channel:	30 mA
SR - Slew Rate:	0.3 V/us
Vos - Input Offset Voltage:	5 mV
Supply Voltage - Min:	3 V
Minimum Operating Temperature:	- 25 C
Maximum Operating Temperature:	+ 85 C
Ib - Input Bias Current:	150 nA
Operating Supply Current:	350 uA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	70 dB to 80 dB
en - Input Voltage Noise Density:	40 nV/sqrt Hz
Series:	LM258
Packaging:	Cut Tape
Packaging:	MouseReel
Packaging:	Reel
Amplifier Type:	High Gain Amplifier
Height:	1.58 mm
Input Type:	Rail to Rail
Length:	4.9 mm
Product:	Operational Amplifiers
Supply Type:	Single, Dual
Technology:	Bipolar
Width:	3.91 mm
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 3 V, +/- 5 V, +/- 9 V
Maximum Dual Supply Voltage:	+/- 16 V
Minimum Dual Supply Voltage:	+/- 1.5 V
Operating Supply Voltage:	3 V to 32 V, +/- 1.5 V to +/- 16 V
Product Type:	Op Amps - Operational Amplifiers
