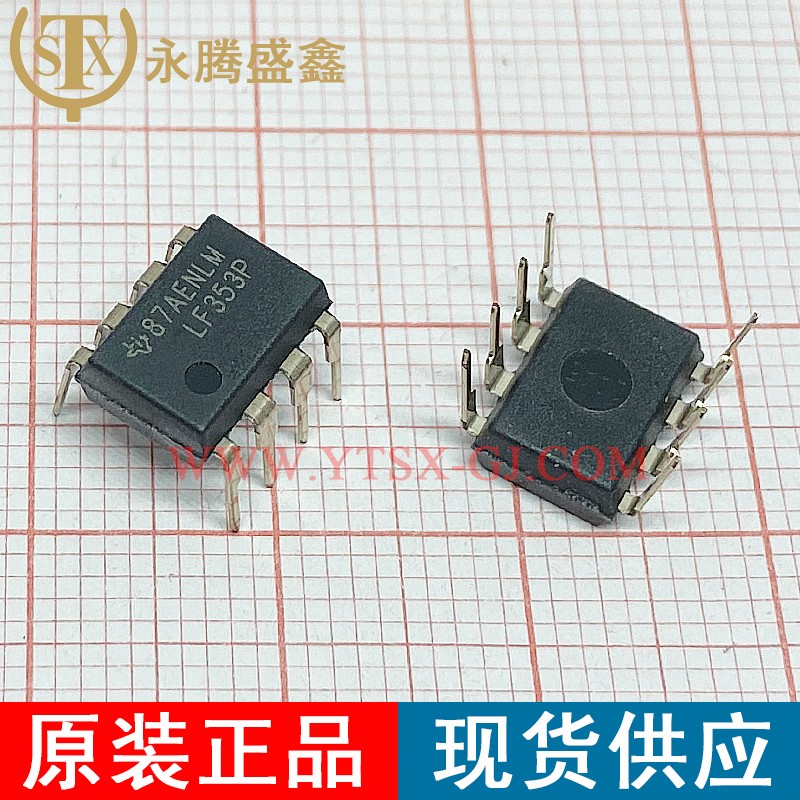

LF353P

Description:

Operational Amplifiers - Op Amps Op Amp

Brand:

Quantity:

41950

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	Through Hole
Package / Case:	DIP-8
Number of Channels:	2 Channel
Supply Voltage - Max:	36 V
GBP - Gain Bandwidth Product:	3 MHz
SR - Slew Rate:	13 V/us
Vos - Input Offset Voltage:	10 mV
Supply Voltage - Min:	7 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Ib - Input Bias Current:	200 pA
Operating Supply Current:	1.8 mA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	70 dB to 100 dB
en - Input Voltage Noise Density:	18 nV/sqrt Hz
Series:	LF353
Packaging:	Tube
Amplifier Type:	Wideband Amplifier
Height:	4.57 mm
Input Type:	Rail to Rail
Length:	9.81 mm
Product:	Operational Amplifiers
Supply Type:	Dual
Technology:	BiFET
Width:	6.35 mm
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
In - Input Noise Current Density:	0.01 pA/sqrt Hz
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 3.5 V
Operating Supply Voltage:	+/- 3.5 V to +/- 18 V
Pd - Power Dissipation:	500 mW (1/2 W)
Product Type:	Op Amps - Operational Amplifiers
