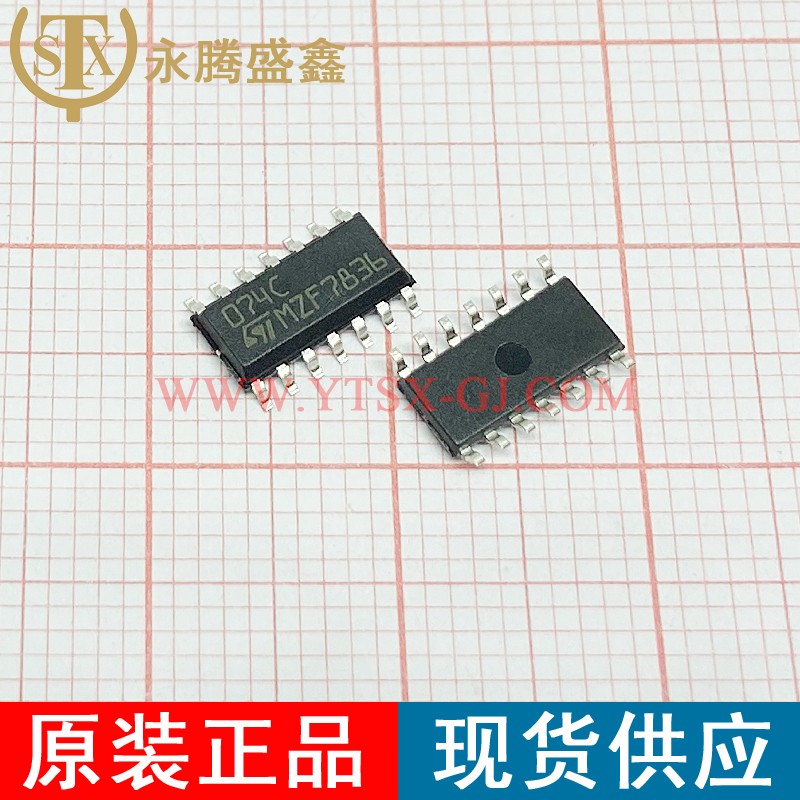

TL074CDT

Description:

Operational Amplifiers - Op Amps Quad Low Noise JFET

Brand:

Quantity:

103843

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	SMD/SMT
Package/Case:	SOP-14
Number of Channels:	4 Channel
Supply Voltage - Max:	36 V
GBP - Gain Bandwidth Product:	3 MHz
Output Current per Channel:	40 mA
SR - Slew Rate:	13 V/us
Vos - Input Offset Voltage:	10 mV
Supply Voltage - Min:	6 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Ib - Input Bias Current:	200 pA
Operating Supply Current:	2.5 mA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	70 dB
en - Input Voltage Noise Density:	15 nV/sqrt Hz
Series:	TL074
Qualification:	AEC-Q100
Packaging:	Cut Tape
Packaging:	Reel
Amplifier Type:	Low Noise Amplifier
Height:	1.65 mm (Max)
Length:	8.75 mm (Max)
Product:	Operational Amplifiers
Supply Type:	Single, Dual
Technology:	BiFET
Width:	4 mm (Max)
Brand:	STMicroelectronics
Dual Supply Voltage:	+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 3 V
Operating Supply Voltage:	6 V to 36 V, +/- 3 V to +/- 18 V
Pd - Power Dissipation:	680 mW
Product Type:	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio:	70 dB
