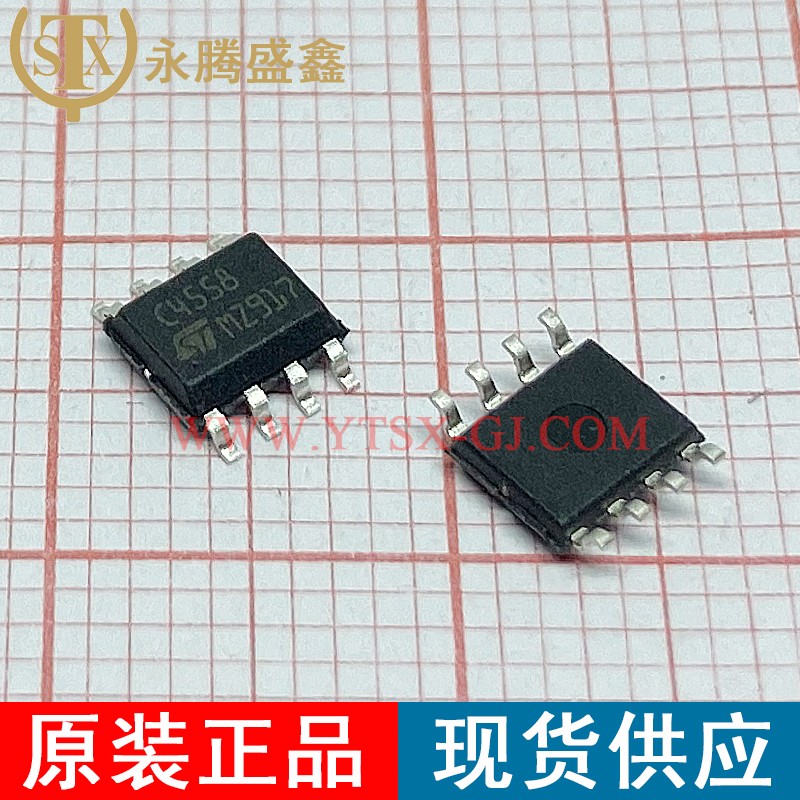

TJM4558CDT

Description:

Operational Amplifiers - Op Amps Dual Bipolar Oper Amps Wide bandwidth

Brand:

Quantity:

531152

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	SMD/SMT
Package/Case:	SOP-8
Number of Channels:	2 Channel
GBP - Gain Bandwidth Product:	5.5 MHz
Output Current per Channel:	20 mA
SR - Slew Rate:	2.2 V/us
Vos - Input Offset Voltage:	5 mV
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Ib - Input Bias Current:	400 nA
Operating Supply Current:	4.5 mA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	90 dB
en - Input Voltage Noise Density:	12 nV/sqrt Hz at +/- 15 V
Series:	TJM4558
Packaging:	Cut Tape
Packaging:	MouseReel
Packaging:	Reel
Amplifier Type:	Wideband Amplifier
Height:	1.65 mm (Max)
Length:	5 mm (Max)
Product:	Operational Amplifiers
Supply Type:	Dual
Technology:	Bipolar
Width:	4 mm (Max)
Brand:	STMicroelectronics
Maximum Dual Supply Voltage:	+/- 22 V
Operating Supply Voltage:	+/- 22 V
Pd - Power Dissipation:	680 mW
Product Type:	Op Amps - Operational Amplifiers
