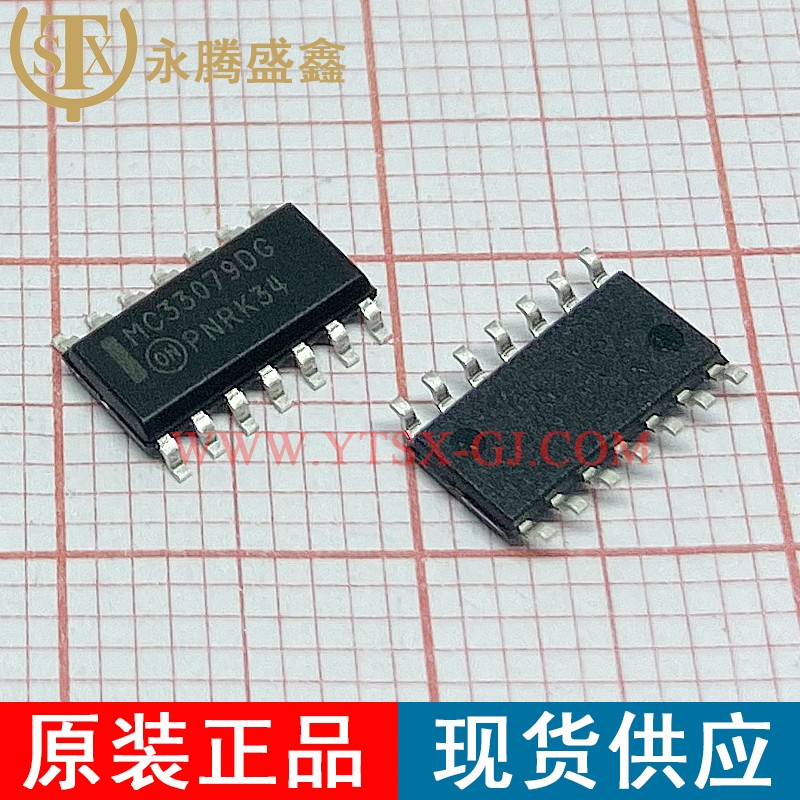

MC33079DR2G

Description:

Operational Amplifiers - Op Amps 5-18V Quad Lo Noise 7V/us Ind. Temp

Brand:

Quantity:

30490

Quick inquiry:

corporate name

contacts

mobile phone

quantity

询价名称

Details:

Product Category:	Operational Amplifiers - Op Amps
Mounting Style:	SMD/SMT
Package / Case:	SOP-14
Number of Channels:	4 Channel
GBP - Gain Bandwidth Product:	16 MHz
Output Current per Channel:	29 mA
SR - Slew Rate:	7 V/us
Vos - Input Offset Voltage:	2.5 mV
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Ib - Input Bias Current:	750 nA
Operating Supply Current:	8.4 mA
Shutdown:	No Shutdown
CMRR - Common Mode Rejection Ratio:	80 dB
en - Input Voltage Noise Density:	4.5 nV/sqrt Hz
Series:	MC33079
Packaging:	Cut Tape
Packaging:	MouseReel
Packaging:	Reel
Amplifier Type:	Low Noise Amplifier
Height:	1.5 mm
Length:	8.75 mm
Product:	Operational Amplifiers
Supply Type:	Dual
Technology:	Bipolar
Width:	4 mm
Brand:	ON Semiconductor
Dual Supply Voltage:	+/- 9 V, +/- 12 V, +/- 15 V
In - Input Noise Current Density:	0.5 pA/sqrt Hz
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 5 V
Operating Supply Voltage:	+/- 5 V to +/- 18 V
Product Type:	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio:	80 dB
